設計與功能
UVN4005R-28-2G
UVN4005R-28-5G
設計與功能
量化金輕屬外殼
外殼採用輕量化金屬一體成型設計，提升耐用性和防護性能。
高防水防塵連接接口
所有連接介面均採用高防水等級連接器，確保系統具有卓越的防水防塵性能。
鎖點安裝設計
通訊模組採用鎖點安裝設計，便於快速拆卸和安裝。
符合國際規範
使用頻段涵蓋國際通訊聯盟無線通訊局所規範的ISM頻段。

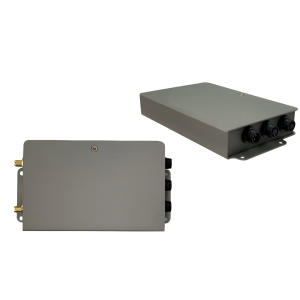

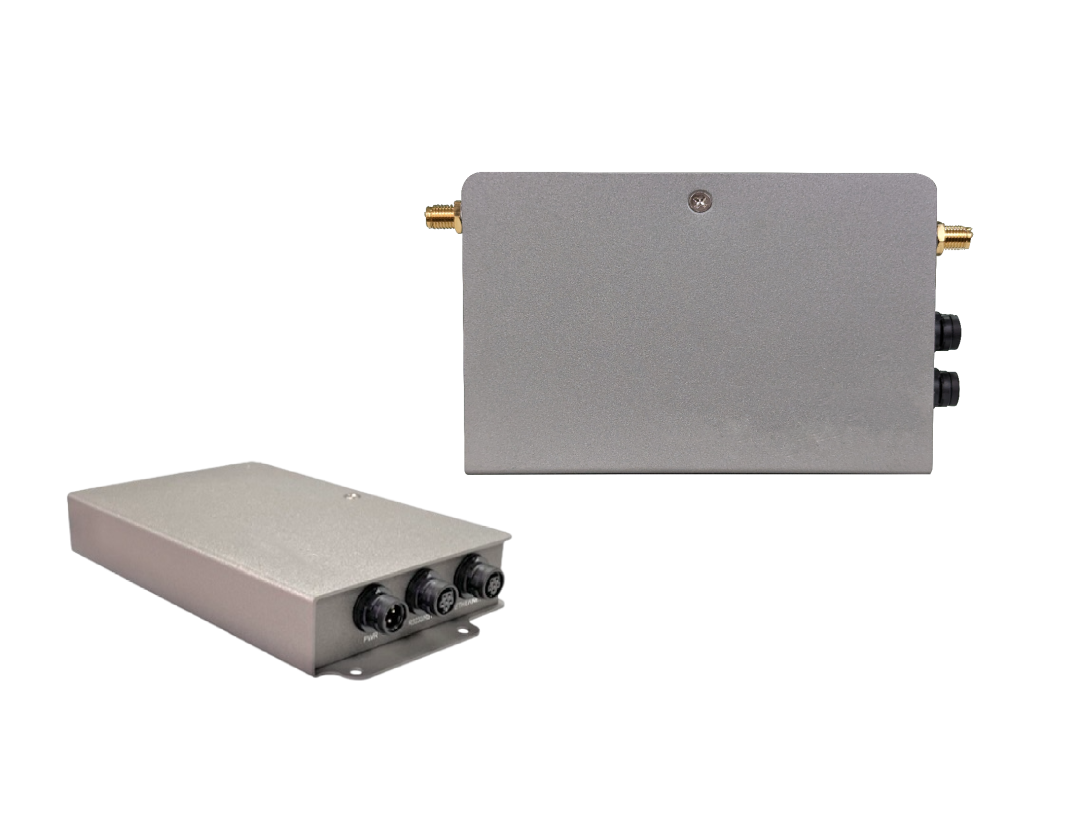

UVN4005R-28-2G
| Wireless | UVN4005R-28-2G |
| Frequency range | 2200 - 2560 MHz |
| Output power | 28 dBm ± 1.5 dB |
| Channel bandwidth | 2.5 - 40 MHz |
| Operating RF channel | ONE |
| Modulation | CCK, DSSS, HT-OFDM |
| Sensitivity | Varying between -96 dBm ± 1 dB and -73 dBm ± 2 dB |
| Antenna system | 2x2 MIMO |
| Max. Physical Layer Data Rate | 300 Mbps |
| Operating mode | Mesh Ad-Hoc |
| Ant. connector | RP-SMA female connector |
| Interfaces | 3 pins (DC) |
| 6 pins (RS233 & Reset function) | |
| 6 pins (Ethernet) | |
| Input Voltage | 12 - 24 VDC |
| Power consumption | Max. 10 W |
| Weight | 140 g |
| Dimension | 117.2 mm x 75.3 mm x 20.8 cm |
| 相關2.4 GHz, NCC 射頻檢驗合格標籤 CCAH23LPB100T6 | |
| Ordering information | |
| ANT2324M5 | 2.4 GHz 5 dBi Omni antenna |

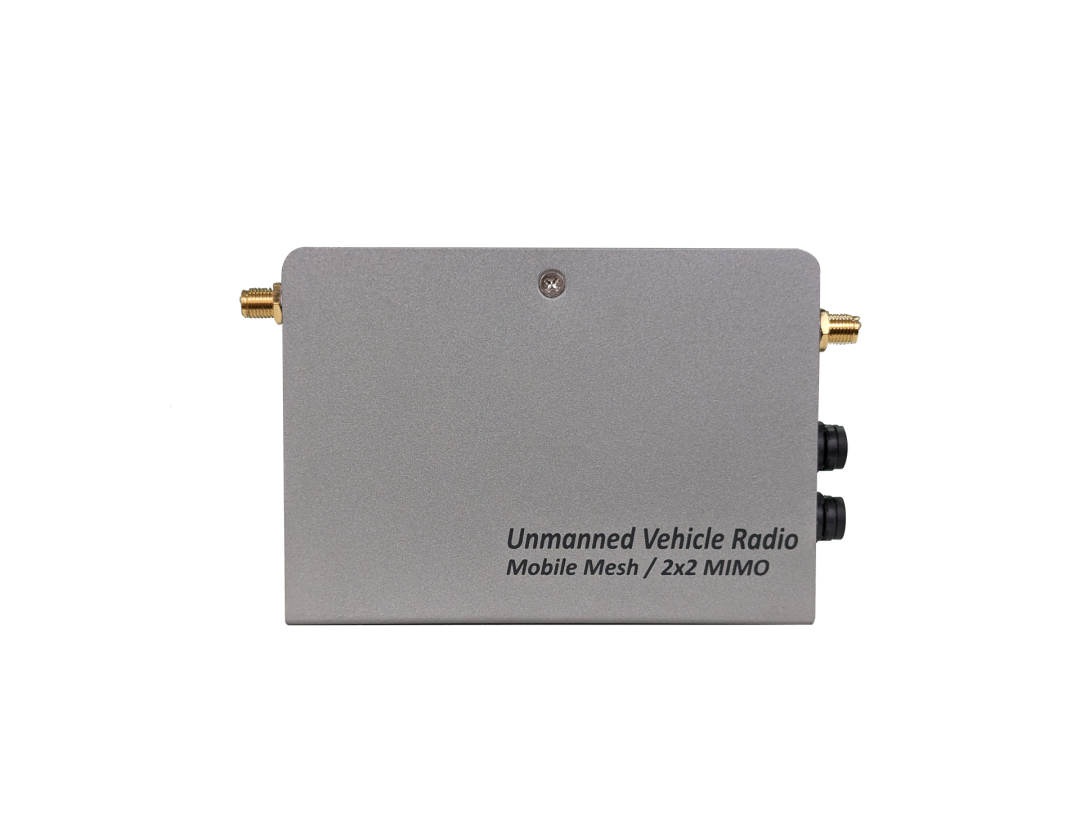

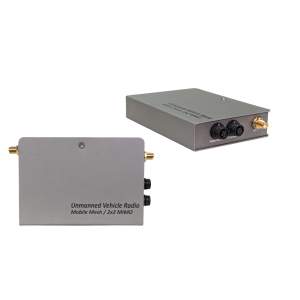

UVN4005R-28-5G
| Wireless | UVN4005R-28-5G |
| Frequency range | 5 GHz |
| Output power | 27 dBm ± 1.5 dB |
| Channel bandwidth | 7 - 40 MHz |
| Operating RF channel | ONE |
| Modulation | HT-OFDM |
| Sensitivity | Varying between -96 dBm ± 1 dB and -73 dBm ± 2 dB |
| Antenna system | 2x2 MIMO |
| Max. Physical Layer Data Rate | 300 Mbps |
| Operating mode | Mesh Ad-Hoc |
| Ant. connector | Type SMA Female x 2 |
| Interfaces | 6 pins (RS233 & DC In) |
| 6 pins (Ethernet) | |
| Input Voltage | 12 - 24 VDC |
| Power consumption | Max. 12 W |
| Weight | 200 g |
| Dimension | 113.5 x 75.2 x 20.5, mm |
| ANT2324M5 | 5000 – 5900 MHz 10dBi 2x2 MIMO Omni-directional antenna |
